System configurations to
meet your clinical needs.
Enjoy the freedom to
see more and do more.
The C-arm revolution has arrived. Infinix™-i Sky + delivers unprecedented flexibility. Packed with advanced features in one comprehensive system, the sky’s the limit when it comes to complete coverage.
- Features a double sliding C-arm and 12×16 flat panel
- Imaging soars to even greater heights with an innovative C-arm flip, lateral flexibility, speed, and full body 3D imaging capability.
- Infinix-i Sky + offers revolutionary ImagingRite technology to generate a 3D image anytime, anywhere.
- Our DoseRite technology offers industry-leading dose management tools designed to minimize patient X-ray exposure while maintaining optimum image quality.
Tools for Unprecedented Coverage
- Fast peripheral access without moving patient or table
- 270 degree C-arm rotation
- Variable C-arm positions
- Automatic synchronization of detector and collimator for correct heads up display, regardless of C-arm position
- Save space by simply flipping the C-arm into AP orientation during procedures such as long-needle biopsies
- 3D digital subtraction angiography (DSA), 3D digital angiography (DA), and low contrast imaging (LCI) can now be performed from the patient head on the left or right side for enhanced efficiency and flexibility.
- 3D DA and 3D DSA can be performed from either side of the patient with the C-arm traveling 210 degrees at 80 degrees/sec providing the option for very fast acquisitions with high image quality.
Clinical Gallery
3D Digital Angiography
3D-DA aqcuisition yields a 3D reconstructed volume with full anatomical information.
Unprecedented flexibility
and integration.
Infinix-i Sky
The Infinix-i C-arm is designed to move around you and your patient so procedures can be performed more comfortably, safely and efficiently.
- Achieve optimal angulations with unprecedented head-to-toe and fingertip-to-fingertip coverage
- Continuously maintains a heads-up display during compound angles with synchronized rotating collimator and FPDs
- Access Halo ensures unobstructed head-end work space to improve patient access for staff and ancillary equipment
270-degree rotation
When paired with a Maquet Magnus OR Table (shown), the Infinix-i Sky C-arm is ideally suited for the OR environment. Maquet Magnus OR Table features:
- Integrated table functionality with C-arm
- Removable tabletops (Modular and Radiology)
Clinical Gallery
Multi Modality Fusion
A 3D image acquired by CT and MRI, a fluoroscopic image, and a device-enhanced image extracted from the fluoroscopic image can be superimposed and displayed.
High performance
plus flexibility.
Infinix-i Biplane
The Infinix-i C-arm is designed to move around you and your patient so procedures can be performed more comfortably, safely and efficiently.
- Achieve optimal angulations with unprecedented head-to-toe and fingertip-to-fingertip coverage
- Simplified biplane positioning with variable iso-center
- Access Halo ensures unobstructed head-end work space to improve patient access for staff and ancillary equipment
Omega Variable Iso-Center
- Simplifies biplane positioning
- The ability to reposition the lateral C-arm while keeping the patient stable enhances procedure efficiency and safety
C-arm Flip
- The ability to switch the Lateral C-arm and detector to the opposing side to lower dose to physician and staff
- Scattered radiation is more than 50% lower on the side of the detector
- Flexibility of the C-arm to flip allows the equipment to be utilized for both cardiac and neuro procedures in the same room
- Variable C-arm configurations allow unprecedented head-end access
Clinical Gallery
Parametric Imaging
Displays an entire image sequence as a single composite image that is color coded in order to characterize the contrast media dynamics and to allow easier visual evaluation.
Improve Productivity Through Procedure Efficiency
- Designed for patient comfort and clinical workflow efficiency – the system moves not the patient
- Contact and proximity detection prevents collisions with other cath lab equipment during Infinix-i system procedures
High performance
plus flexibility.
Zero Compromises.
Clinical Gallery
3D Angiography–Adult
Arteriovenous Malformation of the Left Posterior Cerebral Artery
Faster, Accurate Procedures
Using the right sized FPD can produce better image quality, decrease procedure time and improve throughput.
Increased Room Utilization
System Configurations to Meet Your Clinical Needs
Advanced Software Applications
One system that works like two.
Unprecedented
flexibility and
integration.

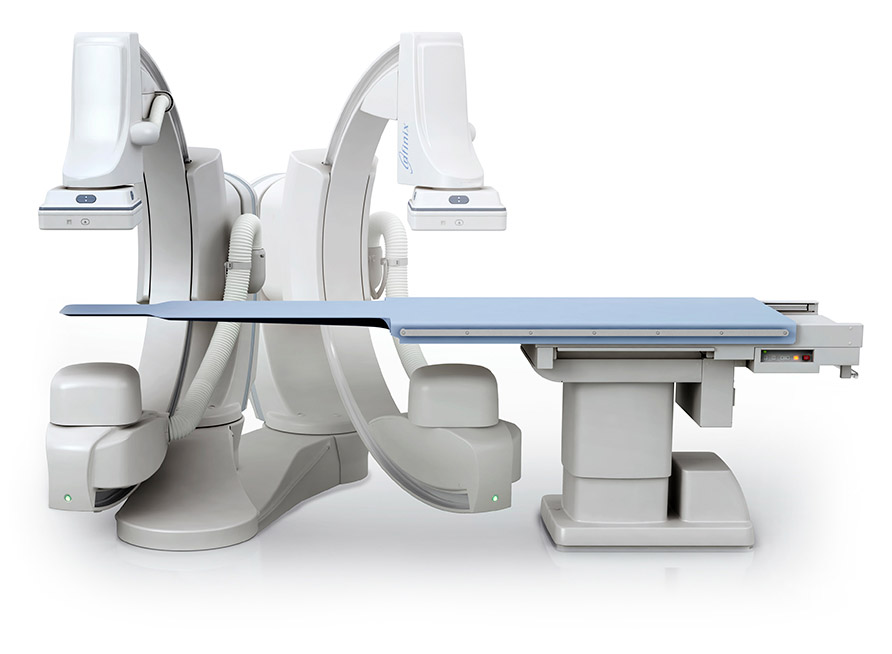

Infinix-i Core +
The Infinix-i C-arm is designed to move around you and your patient so procedures can be performed more comfortably, safely and efficiently.
- Achieve optimal angulations with unprecedented head-to-toe and fingertip-to-fingertip coverage
- Continuously maintains a heads-up display during compound angles with synchronized rotating collimator and FPDs
- Access Halo ensures unobstructed head-end work space to improve patient access for staff and ancillary equipment
5 Axis Positioner
- Unobstructed head-end work space for better access to the patient and ancillary equipment
- Aids in clinical communication and workflow
- Access Halo ensures unobstructed head-end work space to improve patient access for staff and ancillary equipment
- Unobstructed head-end work space for better access to the patient and ancillary equipment
- Aids in clinical communication and workflow
- All Infinix-i systems offer the Access Halo enabling better efficiency and safety
Comprehensive,
Uncompromised
Imaging
State-of-the-art Performance
For hospitals challenged to do more with less, Infinix-i Core is the right shared lab solution. The system satisfies today’s interventional cardiology demands with the ability to upgrade some capabilities in the future for a wider range of procedures.
A Value Driven Solution
- Ideal for routine cardiovascular procedures, enhancing overflow capacity
- Compact single plane design at an affordable investment of financial and logistical resources
Clinical Gallery
Infinix LHC
Left Coronary artery injection.
Next generation Advanced Image Processing (AIP) on a new digital platform. New processing algorithms and proprietary technology provide advanced features, such as, no lag fluoroscopy , additional noise and anti-blooming suppression during image acquisition.
Enabling access no other system can equal, the floor-mounted Infinix-i Core offset C-arm provides the ideal configuration for the broadest range of uses.
- Greater coverage to the pelvis without having to pivot the gantry
- High-speed rotational capability enables single injection coronary rotations
- Steep angulations for optimized vessel profiling during interventional procedures
Access and Coverage
Canon medical systems’ WorkRite ergonomic enhancements provide flexibility for positioning patients and system components to enhance work flow while reducing the risk of strain and injury to clinicians.
- An adjustable table height and weight capacity improves access and convenience while accommodating larger patient
- Optimized monitor boom placement that allows unobstructed line-of-sight monitor viewing for clinician comfort
- Can be configured with an 8″ x 8″ or 12″ x 12″ detector
The Next Dimension in Visualization
Better patient care in
one Interventional
Lab/CT solution.
Infinix-i 4D CT incorporates Canon Medical Systems’ award winning angiography and CT capabilities in the same space.
True CT imaging prior, during, and after the interventional procedures.
Real CT imaging available on demand may help you to:
- Improve visualization and device manipulation
- Offer anatomical and functional information
- Eliminate patient transfer
- Confirm procedural goal
As a result Infinix-i 4D CT may help you to:
- Improve Workflow
- Reduce time-to and time-of procedure
- Increase patient safety
- Reduce costs
Roadmap
CT Hepatic Artery Fusion.
Images acquired by 4D CT can be superimposed with fluoro and be utilized for roadmap during procedure. The 3D image display changes according to the C-arm rotation angle, C-arm sliding angle, SID, field size, tabletop height, and tabletop panning of the X-ray angiography system.
Access and Movements
System Configurations
Configure your Infinix-i 4D CT with the CT system that meets your needs.
Infinix-i Sky
The Infinix-i C-arm provides unprecedented access to the patient and enhances the multi-disciplinary approach to patient care.
- 12″ × 16″ Flat Panel Detector
- 3D Angiography
- Volume Navigation 3D roadmapping
- 3D Multi-Modality Fusion
- Tableside Controls
